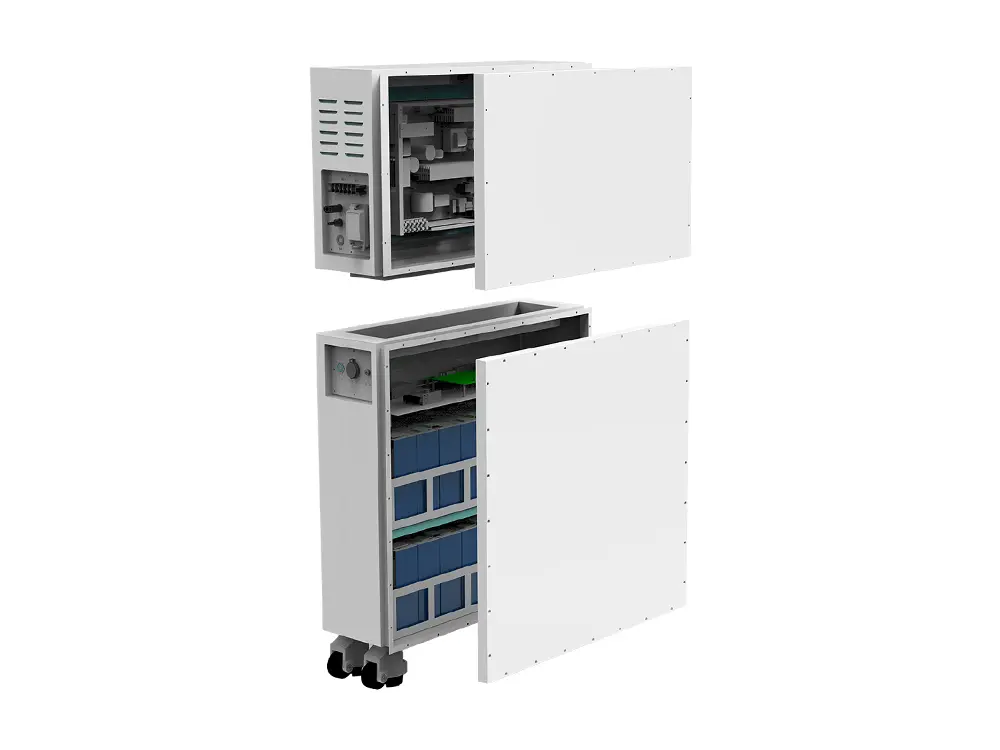

Ground-mounted AIO ESS

Home PVESS can reach spontaneous self-use as well as energy-saving. Significant backup power of loads, and power supply guarantee during power outages.

Classification：

Household ESS

Key words:

HLY-ELS01601Z14.3K

All-in-one

Customized Product

BESS

Battery Energy Storage System

LFP

14.3 kWh

140 kg

Movable

E-mail: business@hengpower.com

WhatsApp: 31-6-31099792

Inquiry

Back

Descriptions

Production

Solution

Cases

Others

Advantages of Ground-mounted AIO ESS

◣ Home PVESS can reach spontaneous self-use as well as energy-saving.

◣ Significant backup power of loads, and power supply guarantee during power outages.

◣ Excellent battery management system let family using optimized electrical.

◣ To realize off-grid family, help them solve power shortage problem.

◣ Peak load shifting making cheap electrical price.

◣ Improving the quality of electricity, ensure the safety of home appliances.

	Product Parameter/Model	HLY-ELS01601Z14.3K
System	Product size/unit	L220W1600H220 mm
	N.W./unit	140kg
	Operation Mode	Self-generating and use/Battery Priority/PV Priority/UPS
	Ingress Protection	IP54
	Working Temp. Range	Charge Mode 0~55℃
	Working Temp. Range	Discharge Mode -20~55℃
	Humidity	5%~95%(RH) No Condensing
AC Output	Rated Power	5kW
	Surge Power	10kW
	Output Voltage/Frequency	AC220V/50Hz
	Eﬃciency	90%
	Protection Function	Undervoltage/Overvoltage/Overtemperature/ Overcurrent/Short circuit protection
Battery	Battery Type	LFP
	Charge-discharge Power	≥94%
	Warranty	5 years
	Certiﬁcation	ROHS/UN38.3/MSDS/IECN62619-2022
	Rated Voltage Rate voltage	51.2V
	Rated Capacity	14.3kWh
AC Input	Input Voltage Range	AC 185V~264V
	Input Frequency	50Hz
	UPS Switching Time	10mS
	AC Charging Power	3kW
