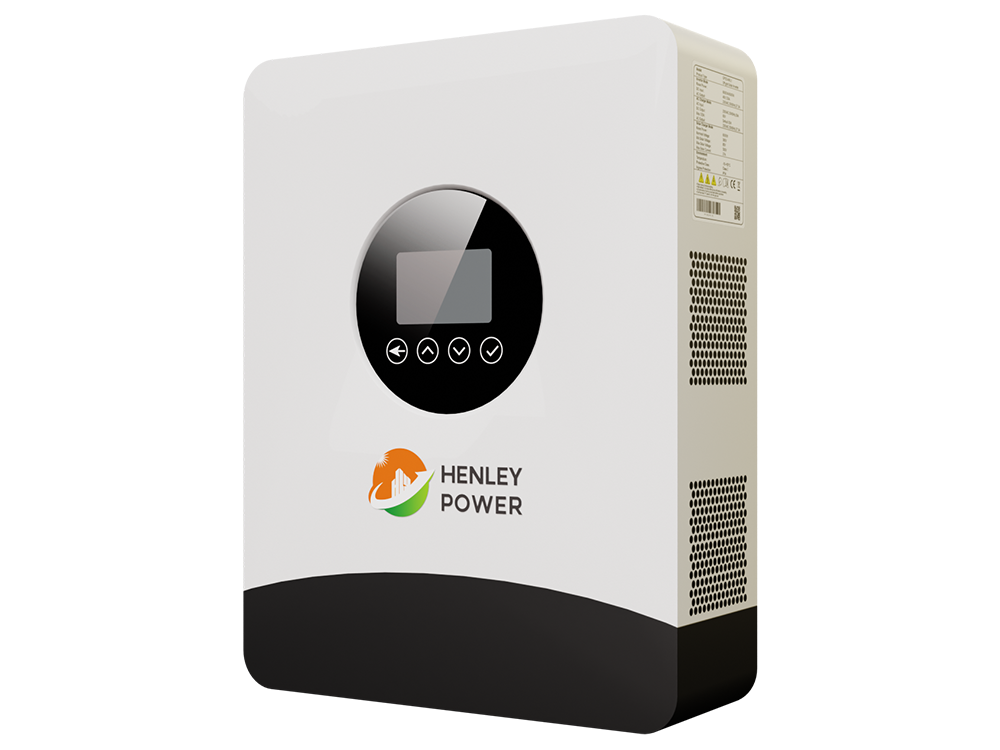

Single-Phase PCS /EU

Built-in 3 MPPT, supporting 200% over configuration of PV. Large current design 30A, adapting high power PV panels. Supporting AC coupling input.

Classification：

Inverter

Key words:

Single-Phase

Power Conversion System

Inverter

8kW

10kW

Wi-Fi

Bluetooth & APP + LED

Remote OTA

Wall-mounted

Outdoor

Descriptions

Production

Solution

Cases

Others

POWER GENERATION EFFICIENCY

Built-in 3 MPPT, supporting 200% over configuration of PV.

Large current design 30A, adapting high power PV panels.

Supporting AC coupling input.

MULTIPLE APPLICATIONS

Supporting 9 parallel machines.

Supporting generator input, and generator can supply the loads and batteries.

4 operating modes, smart control by adjusting time.

Supporting remote configuration and OTA.

FLEXIBLE ADJUSTMENT

Adjusting 40 to 60 V of LFP and Lead-acid battery.

Charge-discharge of battery can reach maximum 210A.

OUTPUT STABILITY

Supporting stable and persist 110% of AC output.

On/Off grid Seamless Handover (<10ms).

Product Parameters/Model	8KW/EU	10KW/EU
General
Max. Altitude	4000m (>2000m derating)
Ingress Protection	IP66
Working Temp. Range	-25℃~60℃ (>45℃ derating)
Humidity	0~100%
Cooling Method	Intelligent Air Cooling
Installation	Wall-mounted
Dimension (WHD)	420mm800mm240mm
Weight	39Kg
PV Connection	Line bank
HMI & COM
Display	Bluetooth & APP + LED, LCD (Optional)
Communication Interface	RS485/CAN (BMS), DRM/RS485 (Meter), RS485, Optional: Wi-Fi/LAN
Certiﬁcation
Safety	IEC 62109-1&2
Grid	IEC 61727/62116, AS 4777.2, NRS 097-2-1
Warranty	5 Years
