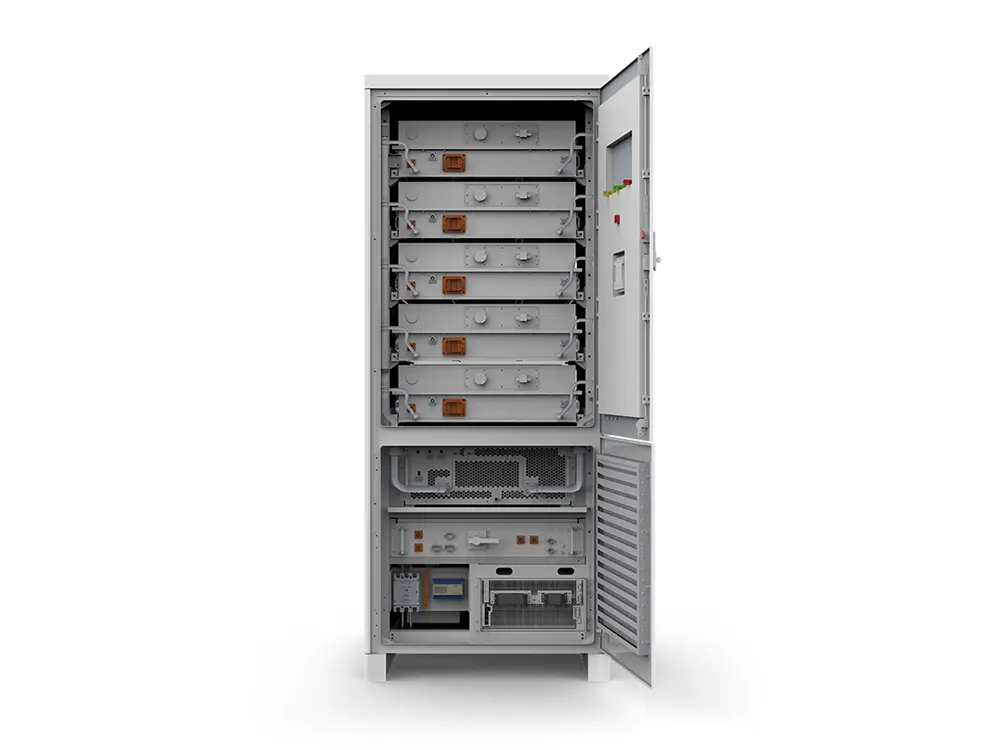

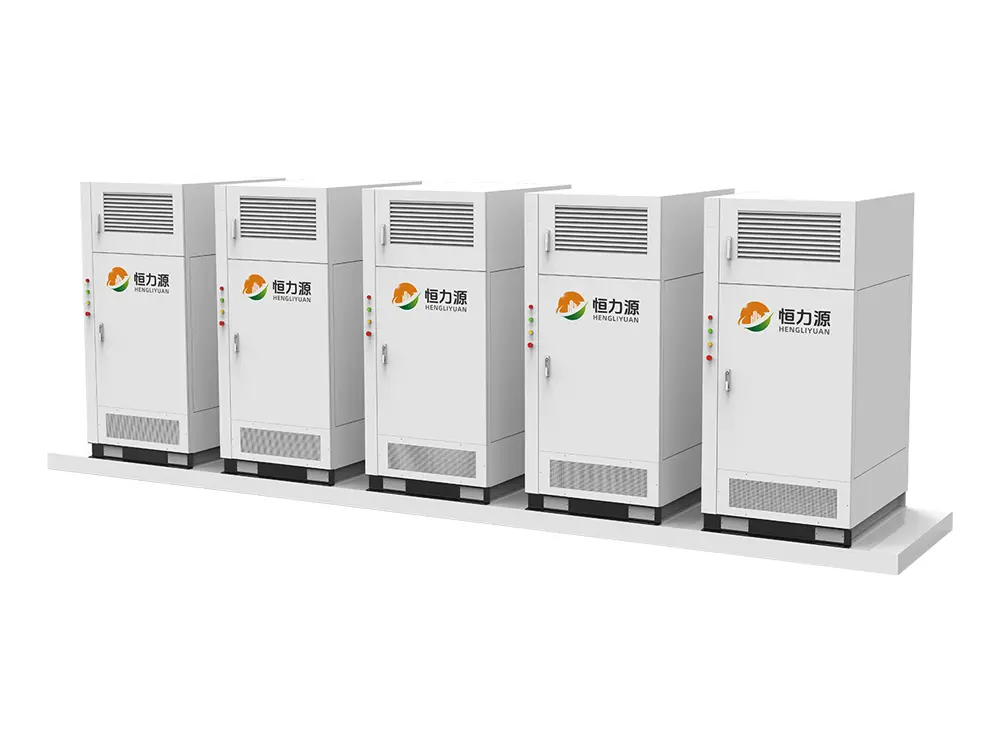

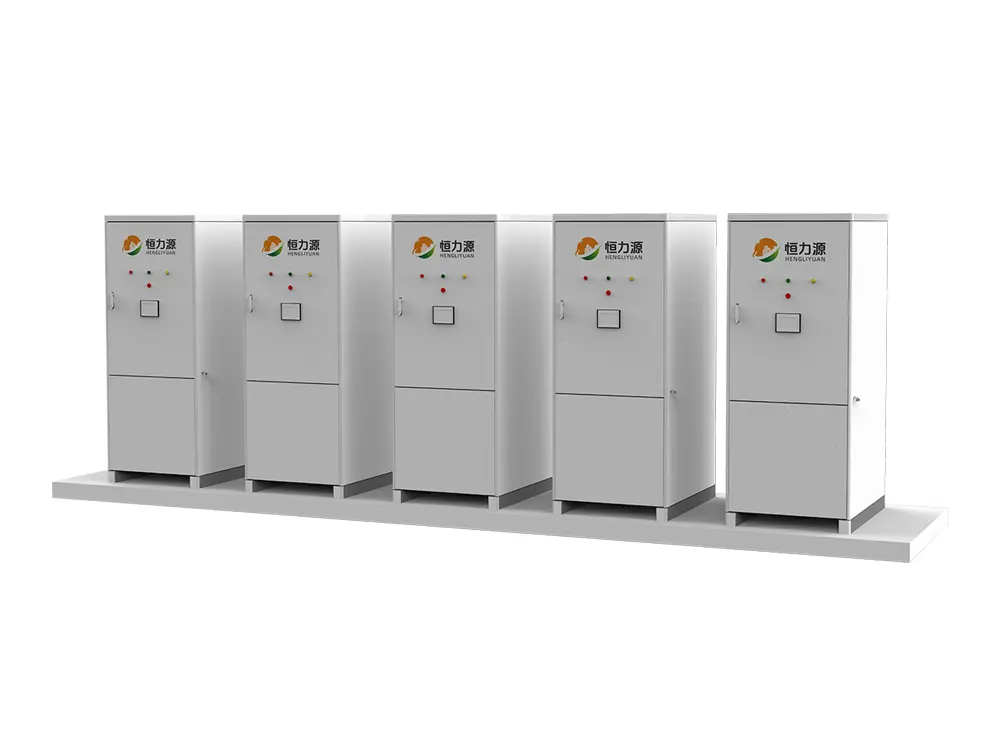

Industrial & Commercial ESS

99.9% of efficiency of MPPT; Multi-mode of charge-discharge; Strong product capability; High quality pure sine wave AC power supply; Rated power continuous output.

Classification：

Key words:

HLY-ELS24001Y215K

HLY-ELS41601Y232K

BESS

Battery Energy Storage System

LFP

215kWh

232kWh

2800 kg

E-mail: business@hengpower.com

WhatsApp: 31-6-31099792

Inquiry

Back

Descriptions

Production

Solution

Cases

Others

EFFICIENCY & RELIABILITY

99.9% of efficiency of MPPT.

Multi-mode of charge-discharge.

Strong product capability

HIGH SAFETY & LONG SERVICE LIFE

Software and hardware provide perfect defense design.

Supports multi-type battery.

Support communication ofLFP BMS

HIGH-QUALITY & STABILITY

High quality pure sine wave AC power supply.

Rated power continuous output.

INTELLIGENT

Remoted monitoring and operation.

Modern aesthetics appearance.

Model	HLY-ELS24001Y215K	HLY-ELS41601Y232K
DC SideParameter
CellType	LFP-3.2V280Ah
ModularConfiguration	1P48S	1P52S
SystemConfiguration	1P240S	1P260S
CellVoltageRange	600V~864V	650V~936V
Cell NominalCapacity	215KWh	232KWh
Max.Current	175A	208A
AC SideParameter
Rated OutputPower	105Kw	125Kw
RatedVoltage	AC380/400V
RatedCurrent	159A	189A
RatedFrequency	50/60Hz
OutputWave	≤3%
System Parameter
Size	115015002500mm	115015002500mm
Communication	RS485、CAN、LAN、REPO	RS485、CAN、LAN、REPO
IPGrade	IP54	IP54
FPS	Pack level ﬁre protection	Pack level ﬁre protection
OperationTemp.Range	-20 ~ 55℃ (Lower Capacity > 45℃)	-20 ~ 55℃ (Lower Capacity > 45℃)
AllowableHumidity	5 ~ 95％RH ，No condensate water	5 ~ 95％RH ，No condensate water
AllowableAltitude	45℃@2000 m (No inﬂuence)， @2000-4000 m (Lower Capacity)	45℃@2000 m (No inﬂuence)， @2000-4000 m (Lower Capacity)
