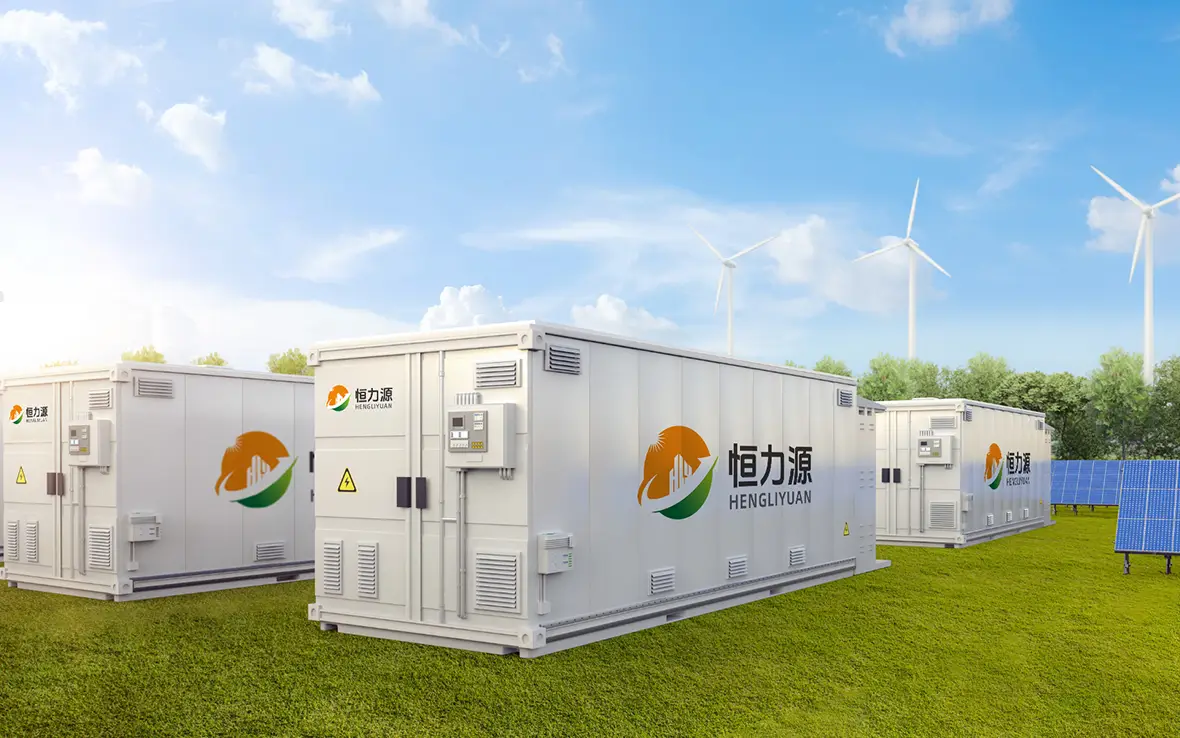

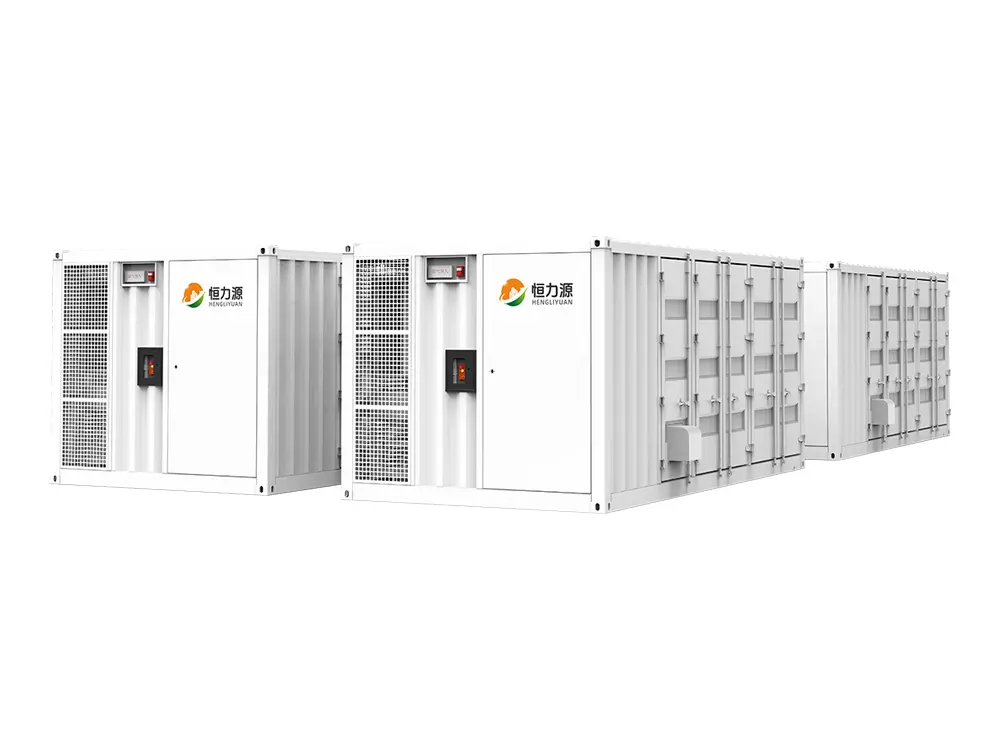

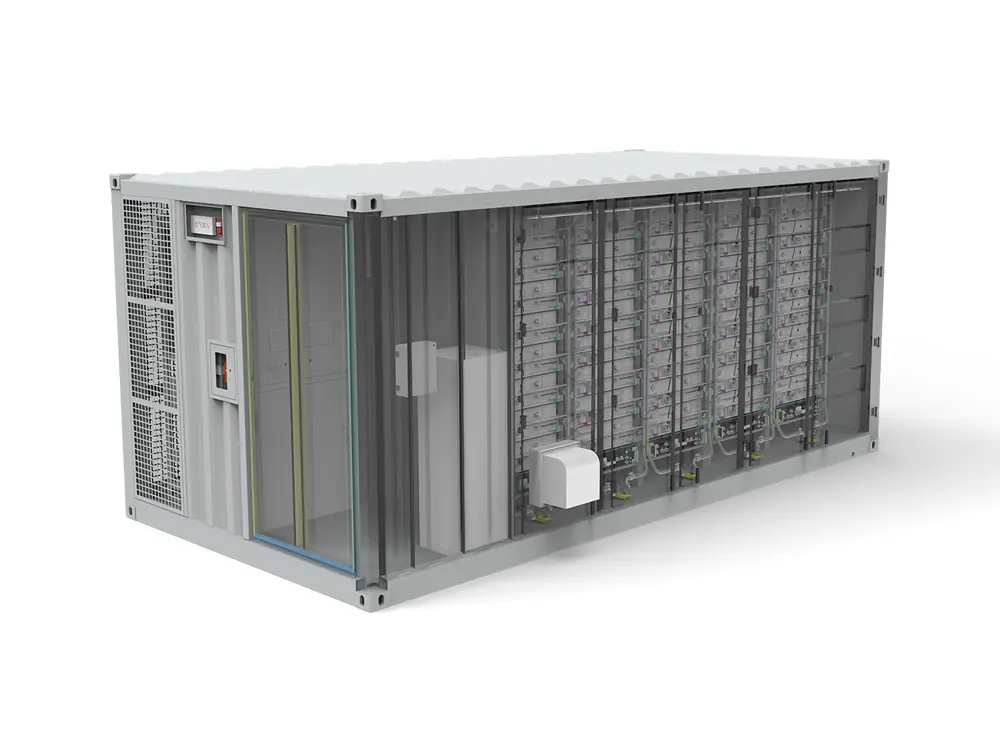

Liquid-cooled Concentrated ESS
Classification：
Liquid-cooled Concentrated ESS
Key words:
HLY-SLS38410Y 3.44MWh
HLY-SLS41612Y 5.01MWh
LFP, 3.44MWh
5.01MWh, 44 ton
E-mail: business@hengpower.com
WhatsApp: 31-6-31099792
Descriptions
Production
Solution
Cases
Others
FLEXIBILE & CONVENICY
Highly integration, decreased difficult of on-site construction. Standard container design, flexible implementation, O&M convenience.
Quickly power dispatch response, and the power of PCS response time <20ms.
INTELLIGENT O&M
Suitable all scenarios, and intelligent adjustment from grid-side and user-side.
Cloud connection, can realize fault recoding and intelligent diagnosis.
SAFETY & RELIABLE
IP 54 level can be normally used in the complex outdoor environment.
Not lower capacity ofPCS at 50 degree, which means that system has highly stability.
COST-EFFECITIVE
Intelligent liquid cooling temperature control system, refined thermal management, to reach a 40% reduction in auxiliary power assumption.
High energy density, reduced floor area of CES by over 40%.

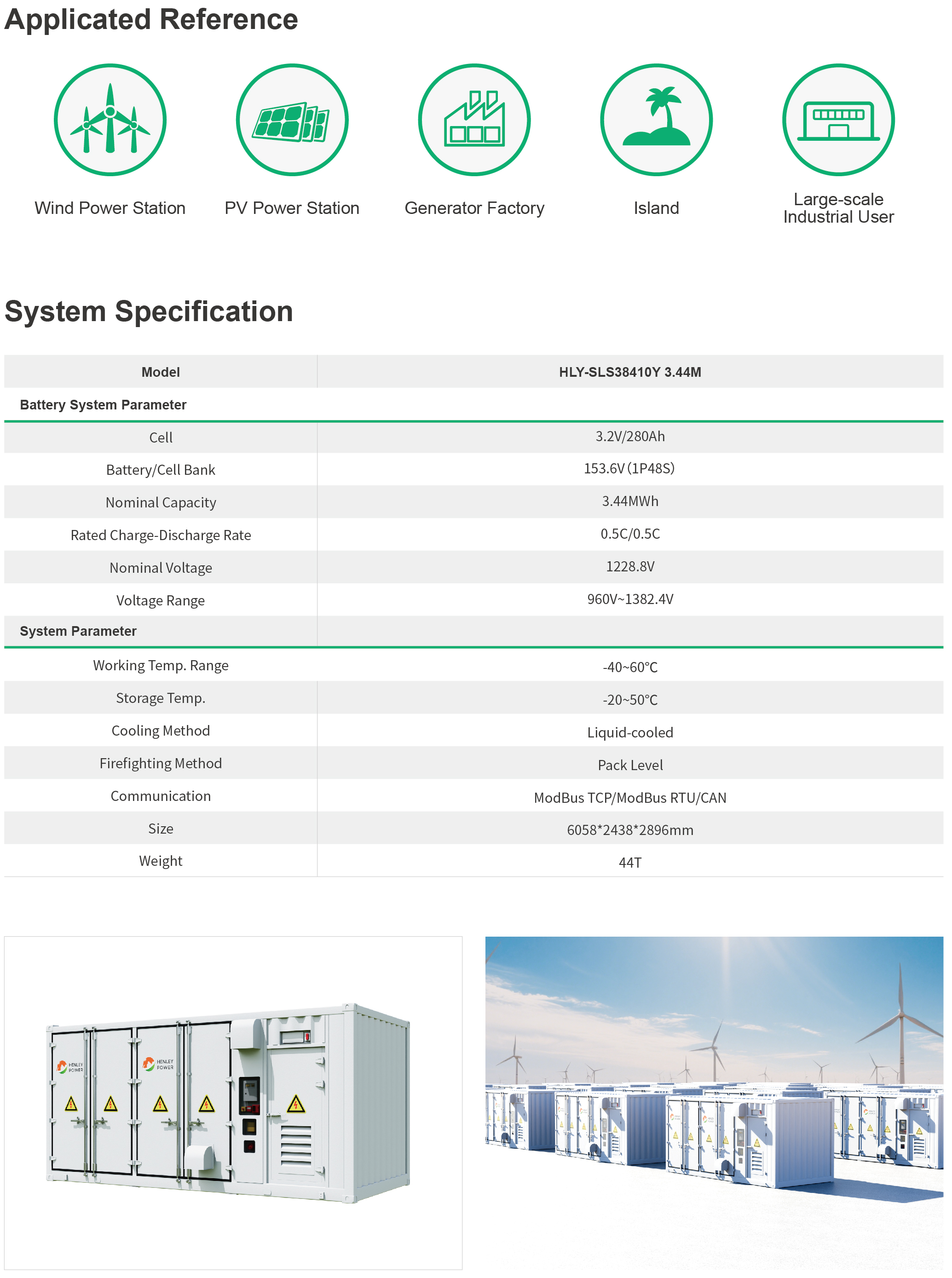

| Model | HLY-SLS38410Y 3.44M | HLY-SLS41612Y 5.01M |
| Battery System Parameter | ||
| Cell | 3.2V/280Ah | 3.2V/314Ah |
| Battery/Cell Bank | 153.6V（1P48S） | 166.4v（1p52s） |
| Nominal Capacity | 3.44MWh | 5MWh |
| Rated Charge-Discharge Rate | 0.5C/0.5C | 0.5C/0.5C |
| Nominal Voltage | 1228.8V | 1331V |
| Voltage Range | 960V~1382.4V | 1040V~1497V |
| System Parameter | ||
| Working Temp. Range | -40~60℃ | |
| Storage Temp. | -20~50℃ | |
| Cooling Method | Liquid-cooled | |
| Firefighting Method | Pack Level | |
| Communication | ModBus TCP/ModBus RTU/CAN | |
| Size | 6058*2438*2896mm | |
| Weight | 44T | |
5.125 MW PV Project
Production workshop
Production workshop
Production workshop
Production workshop
AIO ESS System
High Voltage ESS System
Low Voltage ESS System

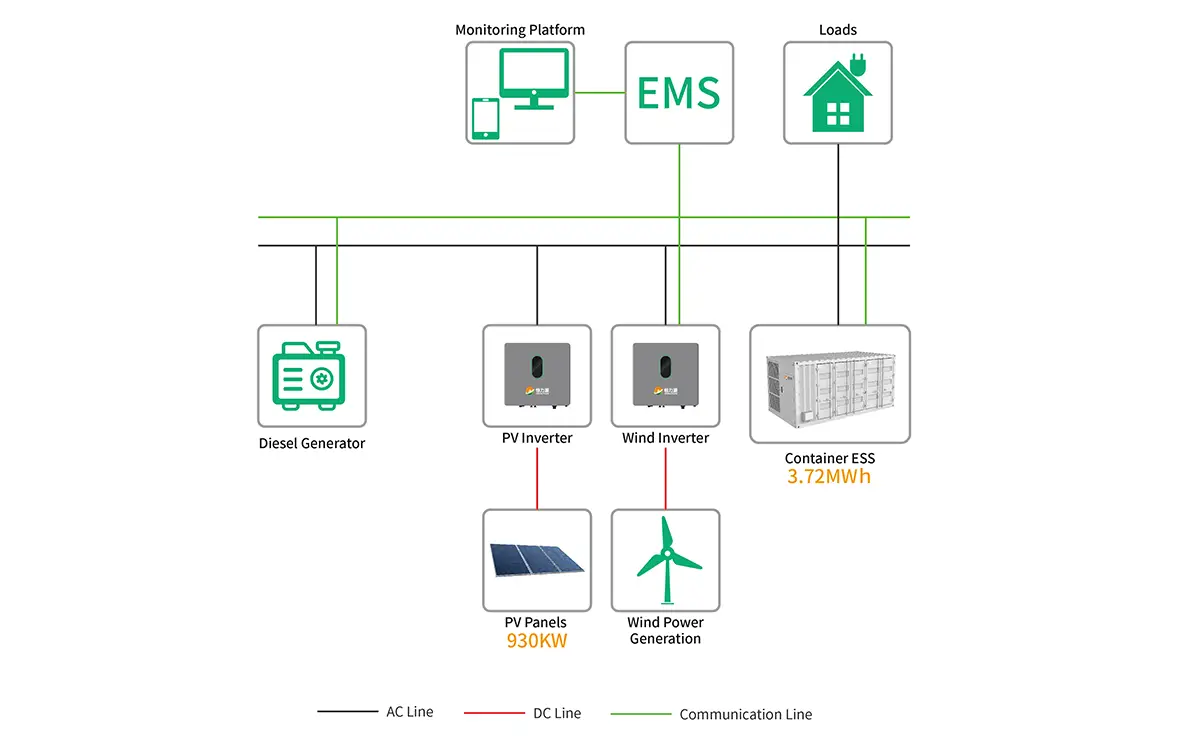

Wind-Solar-Diesel-ESS Microgrid

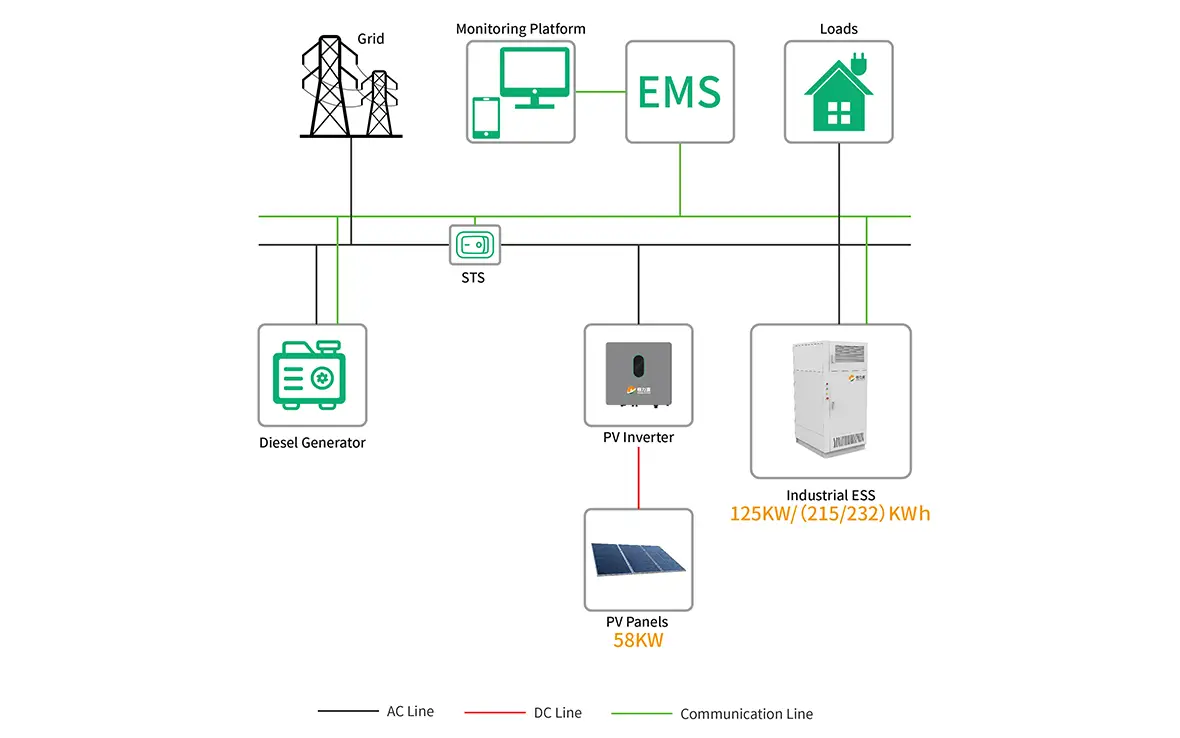

Industrial Solar-Diesel-ESS Microgrid

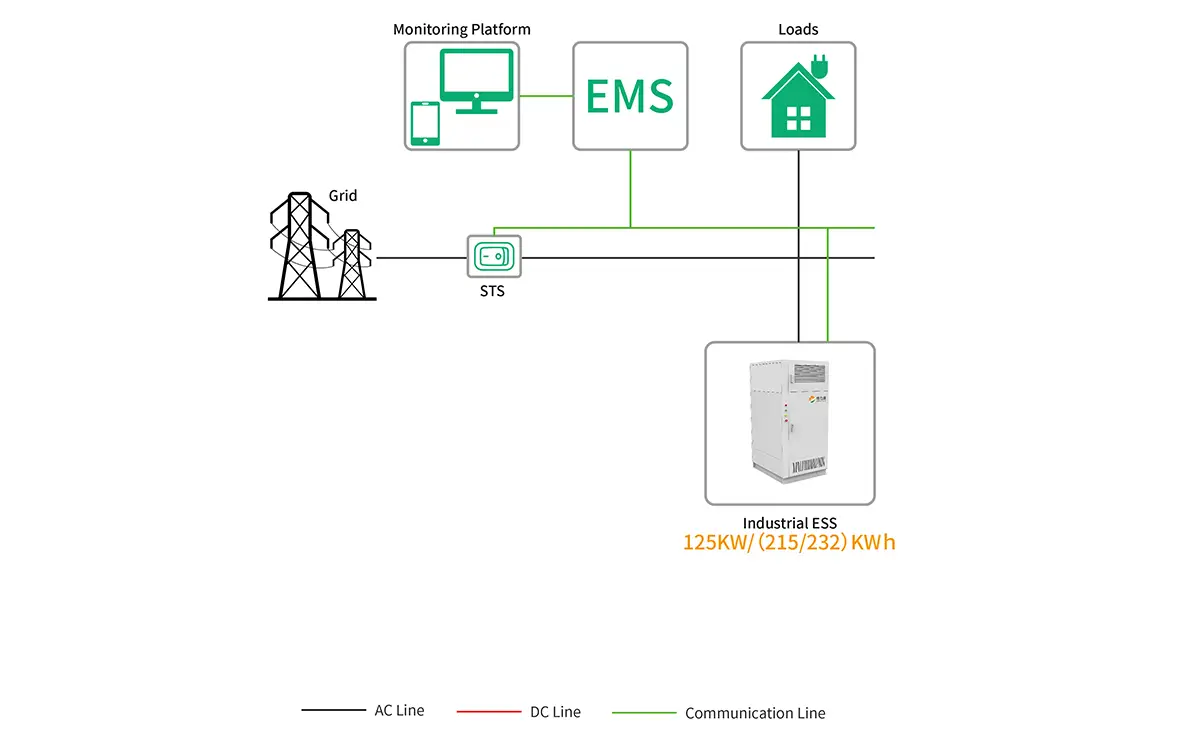

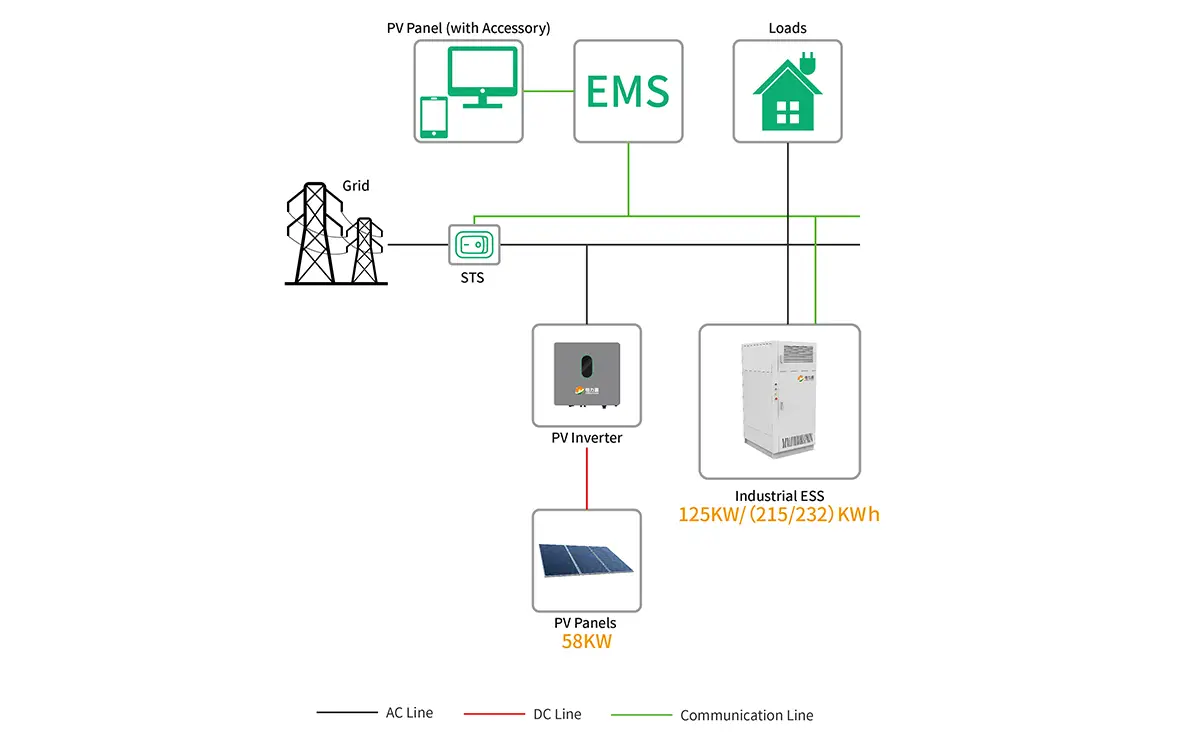

Industrial Solar-ESS Solution

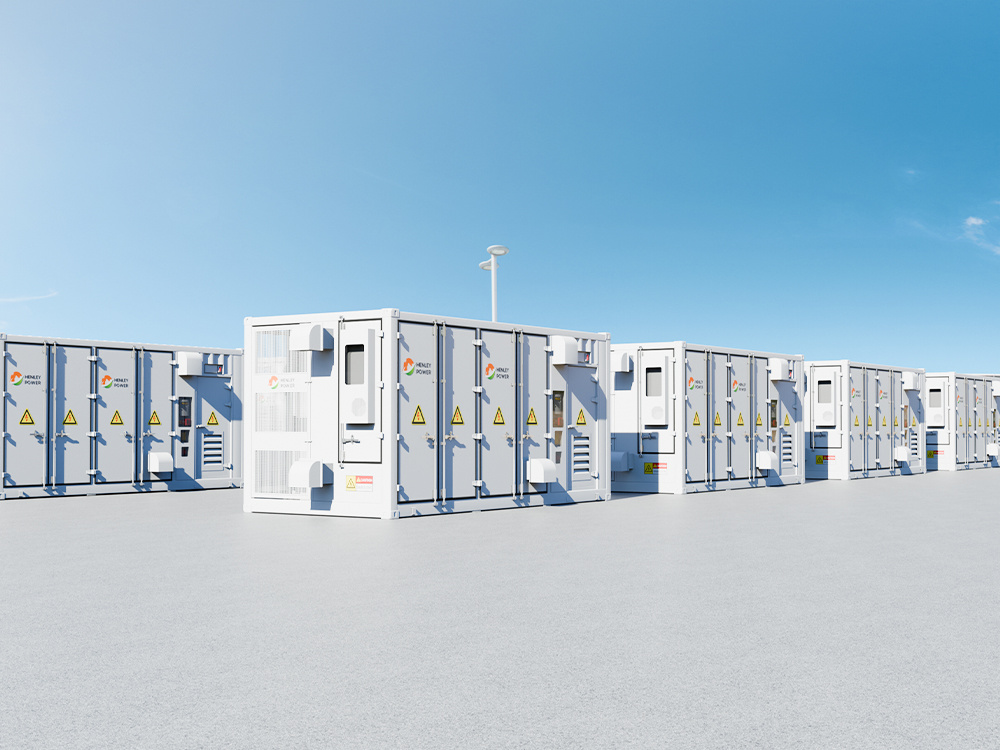

Utility-scale
Peak Load Shifting Applicated Scenarios

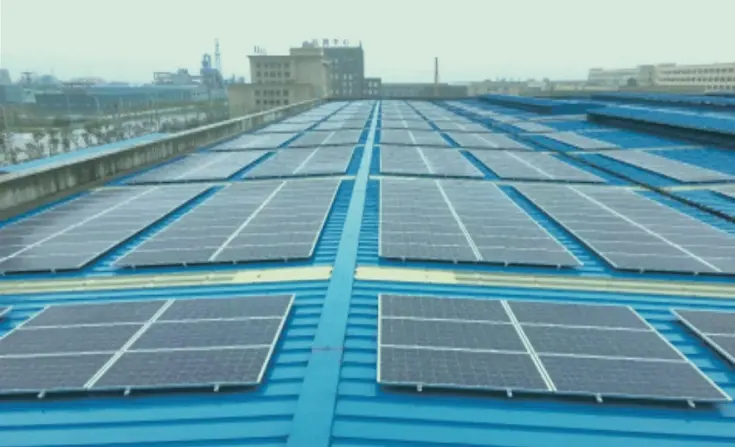

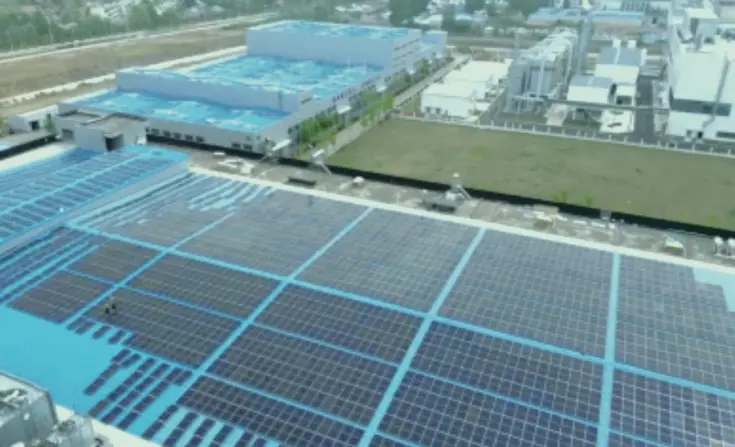

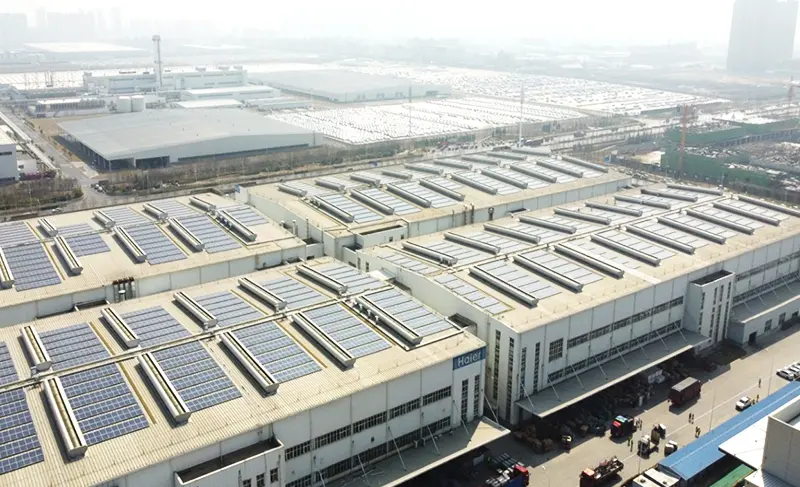

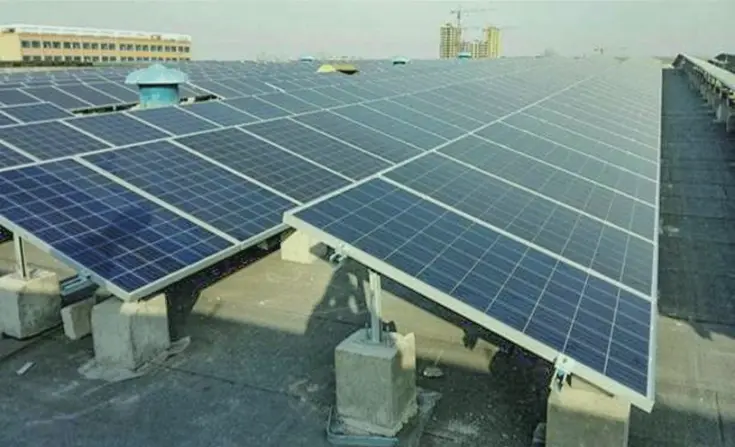

Distributed PV Project in Shandong Golden Cell

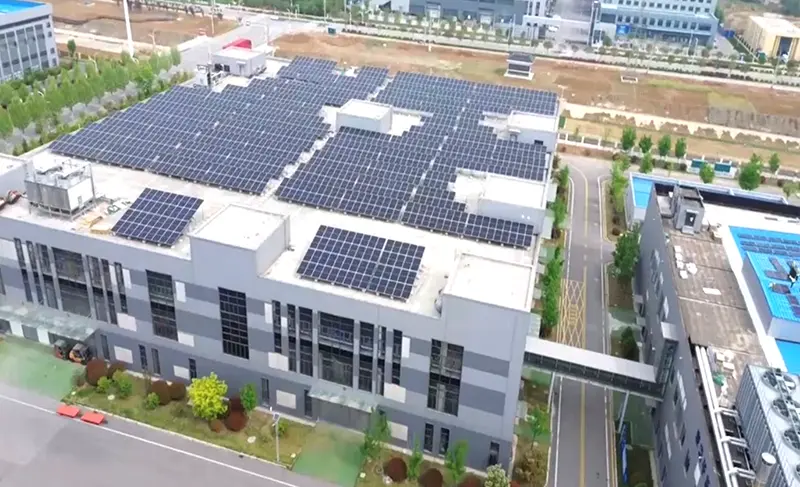

Distributed PV Project in Jinan Industrial Park

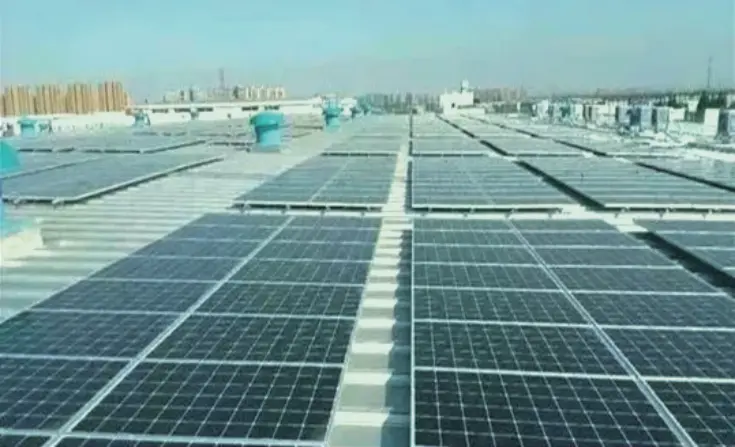

Distributed PV Project in Zibo Food Factory
