Stackable ESS

Stackable ESS is stacking multiple energy storage units together, which the total power storage capacity can be significanly increased to satisfy large-scale electricity demand.

Classification：

Household ESS

Key words:

Stackable ESS

Customized Product

BESS

Battery Energy Storage System

LFP

5.12-20.48 kWh

76-216 kg

E-mail: business@hengpower.com

WhatsApp: 31-6-31099792

Inquiry

Back

Descriptions

Production

Solution

Cases

Others

Advantages of Stackable ESS

◣ lmprove the Capacity of ESS

Stackable ESS is stacking multiple energy storage units together, which the total power storage capacity can be significanly increased to satisfy large-scale electricity demand.

◣ Enhance the Ability of Output

Stackable ESS can stack the power ouput capabilities of multiple energy storage units, providing more stronger power ouput to meet higher power loads.

◣ lmprove the Reliability of System

By using parallel connection to avoid even if one of the energy storage umnits fails, the entire system can still continue to operate, thereby improving the reliability of system.

◣ Flexibility and Scalability

Stackable ESS has high flexibility and sealability to flexible configured and expanded according to achual requirements which adapt to difierent applicated scenarios and capacity requirements.

◣ Reduce System Cost

Compared to a single high-capacity ESS, the stackable ESS can be configurated and optimized more fexibly, which helps reduce the cost and investment risk of the system.

◣ High Energy Density and Power Output

Stackable ESS can store more energy within a limited size and stratify high power demands by increasing energy and power density.

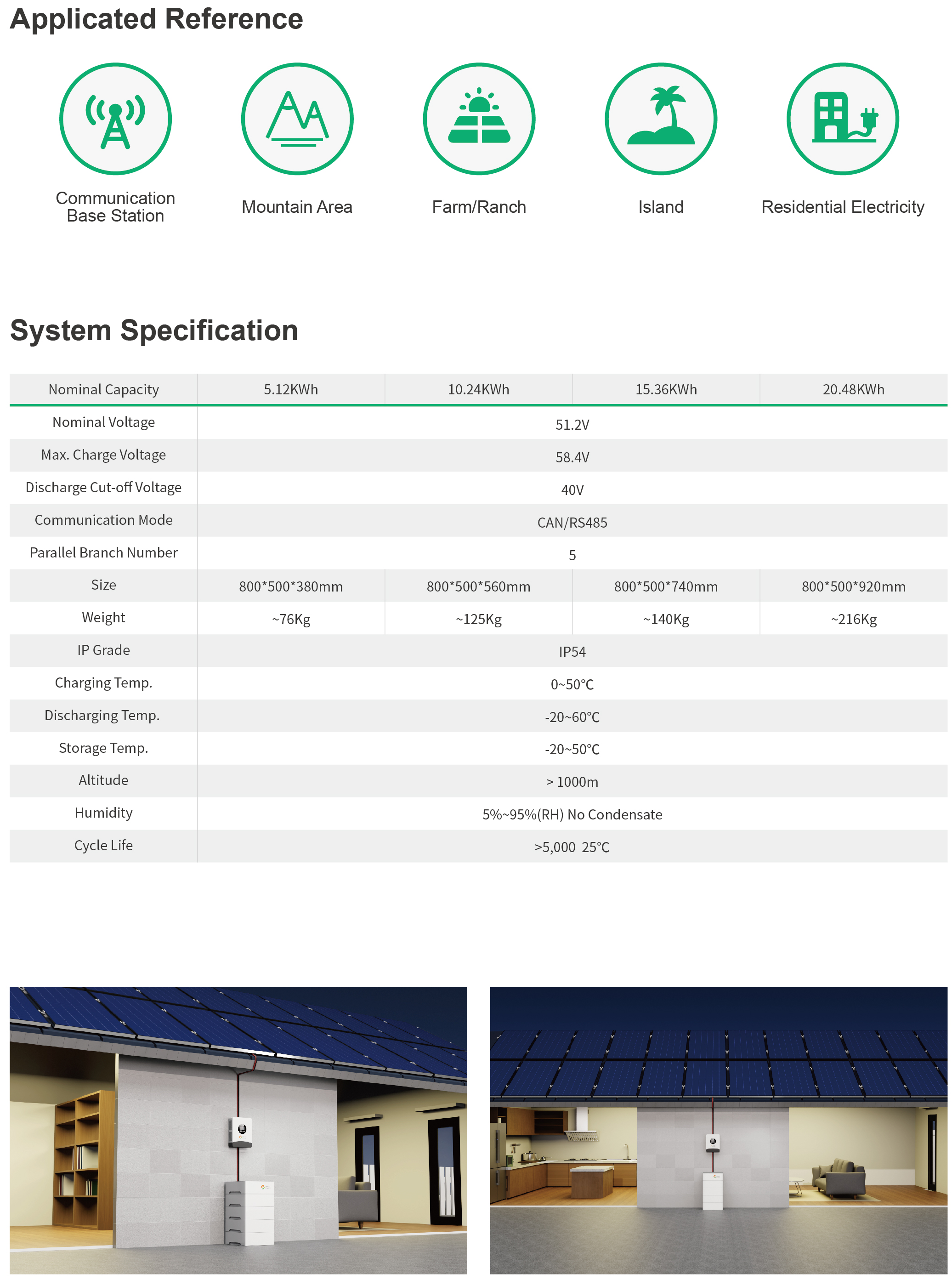

SPECIFICATION
Nominal Capacity	5.12KWh	10.24KWh	15.36KWh	20.48KWh
Nominal Voltage	51.2V
AC Output Voltage	220VAC±10%
AC Output Power	5000W
AC Output Frequency	50/60Hz
Max. Charge Voltage	58.4V
Discharge Cut-off Voltage	40V
Communication Mode	CAN/RS485
Parallel Branch Number	5
Size	800500380mm	800500560mm	800500740mm	800500920mm
Weight	~76Kg	~125Kg	~140Kg	~216Kg
IP Grade	IP54
Charging Temp.	0~50℃
Discharging Temp.	-20~60℃
Storage Temp.	-20~50℃
Altitude	> 1000m
Humidity	5%~95%(RH) No Condensate
Cycle Life	>5,000 25℃
